Treadmill

ergosprint

ergosprint features a striking design and outstanding properties. Due to the large adjustment range for speed and incline, a smoothly running, powerful 4 HP motor, and a large running surface with low step-on height, the treadmill can be used in many areas. The sturdy, powder-coated frame guarantees reliable stability – even for stress tests or training with obese patients.

  • speed 0.1 to 24 km/h
  • incline 0 to 25%
  • large running surface, 56 cm x 150 cm

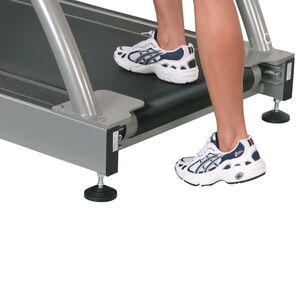

  • low step-on height
  • patient weight up to 200 kg
  • convenient control terminal
  • user-programmable exercise test protocols
  • manual operation
  • long hand rails
  • safety bar
Further information on the product can be found here

Details

All key data in a single display.

The LC display stands out for its excellent readability.

In addition to the control option via PC-ECG or ECG recorder, the intuitive operation also enables the performance of custom ergometric test protocols or manual speed and incline adjustments.

ergosprint treadmills are equipped with a tethered magnetic emergency stop key by default.

If the patient or athlete moves to the rear area of the running surface while exercising, the disconnection of the magnetic switch automatically stops the treadmill.

Additional emergency stop buttons can be installed on the handrails (right and/or left).

Long handrails offer additional patient safety, especially for using the treadmill in rehabilitation. Thanks to their special shape, the handrails also serve as handgrips to access the treadmill.

The ergosprint safety bar with integrated fall protection harness offers additional safety, especially for rehabilitation measures and performance diagnostics.

The user wears a special chest belt that is connected to an emergency stop switch via an adjustable tether.

This design reliably prevents falling forward – the user is caught and the treadmill ergometer is automatically switched off.

All leading ECG manufacturers support a control option for the ergoline treadmill ergometer in their exercise ECG or ergospirometry systems.

All units include a RS-232 and USB interface by default.

Options/accessories

  • Option

    Control terminal

    • large control terminal with LC display
    • 10 user-programmable protocols
    • manual operation
    • Bruce, Naughton etc. pre-configured
    • tethered magnetic emergency stop key
    • connection for two additional emergency stop buttons

    Part number : erg181.202

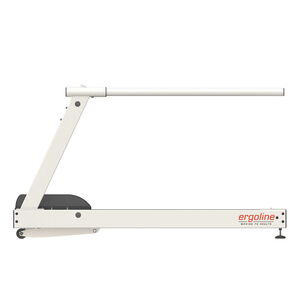

    Long hand rails

    • increases patient safety
    • facilitates access to the ergometer
    • additional grab handle

    Part number : erg181.201


    Emergency stop button

    • increases patient safety
    • can be mounted on the left or right

    Part number : erg181.203


    Safety bar with fall protection harness

    • increases patient safety
    • incl. fall protection harness

    Part number : erg181.301

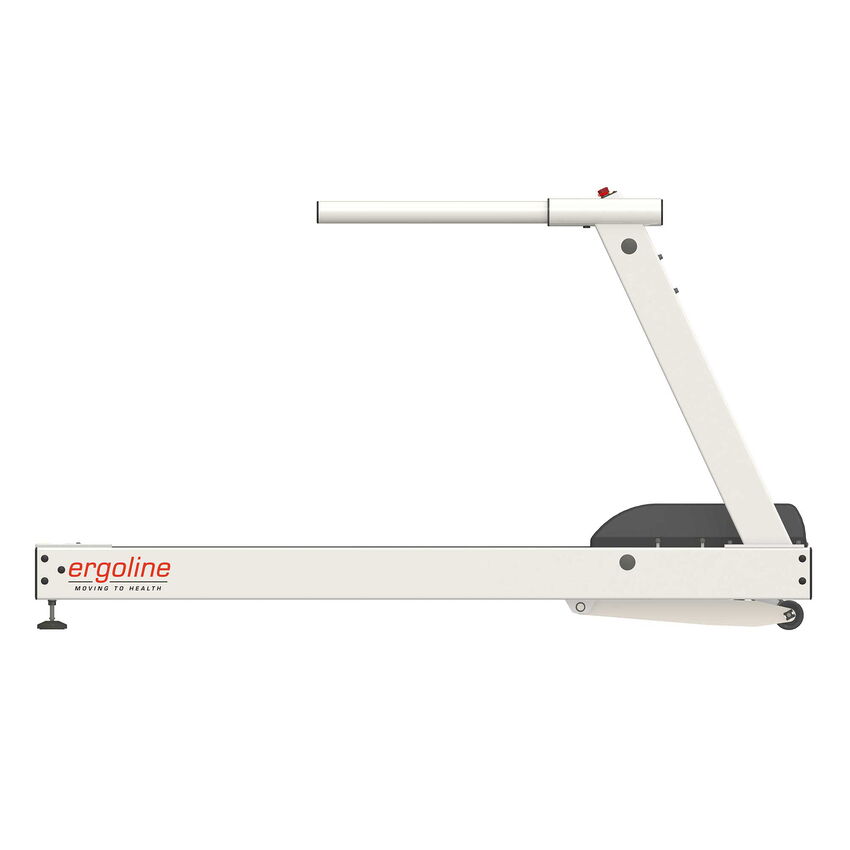

Additional views

Technical details

Product Information

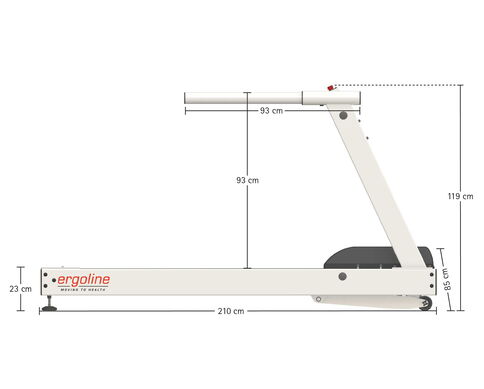

Dimensions and weight

Treadmill

Length: 200 cm
Width: 82 cm
Height: 135 cm 265 cm with safety bar
Weight: approx. 220 kg

Further information
For further technical specifications, please click here

User manual and downloads

The user manual, documents, software and technical specifications can be downloaded here – free of charge.
