Bicycle ergometers

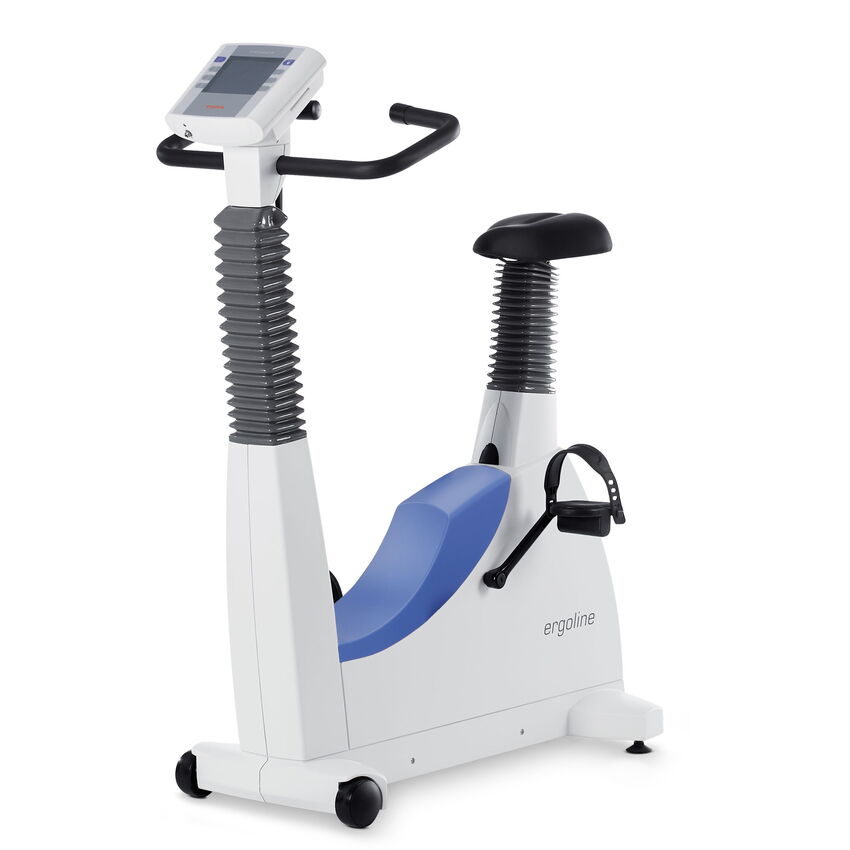

ergoselect 200

The classic ergometer for exercise ECG tests. From a powerful ergometer for exercise ECG and performance diagnostics to stand-alone use for heart rate-controlled training—the integration of different modules offers maximum user flexibility for assembling an ergometer that truly meets every need.

  • functional design
  • innovative, future-proof technology
  • hygienic, easy-to-clean surfaces
  • dual handlebar adjustment
  • mechanical/motor-assisted seat adjustment
  • patient weight up to 200 kg
  • load range from 6 to 1000 watts
  • 10 user-programmable exercise test protocols
  • excellent stability
  • wide range of expansion options
Further information on the product can be found here

Details

The motor-assisted seat height adjustment in conjunction with a tilt protection panel allows for the safe performance of exercise ECG tests, even with patients weighing up to 200 kg.

The noise-insulating ergometer case made of high-quality, specially coated polyurethane foam features an easy-to-clean, sweat-resistant surface.

In addition to the standard option of rotating the handlebar by 360°, the ergoselect 200 model offers mechanical, stepless handlebar height adjustment.

The handlebar and seat position can be precisely adjusted to the respective patient for special applications (for instance, performance diagnostics, rehabilitation).

The electrical saddle height adjustment makes it easier for older or disabled patients to master the sometimes problematic access to the ergometer. The ergoselect 200 saddle height can be conveniently adjusted at the control terminal, with the patient seated in the saddle during the adjustment process. Together with the additional tilt protection, the device can be used for patients with a body weight up to 200 kg.

Thanks to the use of high-quality control electronics and reliable components, our devices don’t just meet the standard specifications for medical ergometers, but far exceed them – over the entire load range from 6 to 1000 watts.

The ergometer cases are available in many colors to match any practice or hospital interior design.

The ergoline interface protocol is now considered the industry standard. All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.

A wide range of connection options guarantees reliable communication with external devices such as PC-based ECG units and ECG recorders.

In addition to the standard RS-232 and USB interface, we of course also offer analog and wireless connections via Bluetooth or WLAN.

The control terminal P, in addition to control via PC-based ECG systems or ECG recorders, enables the performance of exercise tests in stand-alone mode (10 freely programmable protocols) as well as the manual operation of the ergometer. All relevant parameters are shown on the easily readable, illuminated LC display during the exercise test.

In addition to control by external devices, stand-alone exercise tests, or manual operation, the control terminal K also allows for performing freely programmable training sessions and performance tests. For example, during a heart rate-controlled training, the chest strap records the pulse signals and automatically regulates the ergometer output to ensure a constant heart rate. The clearly structured graphic display shows the current parameters and the course of the heart rate and performance in curves.

The optionally integrated, automatic blood pressure measurement works with a specifically developed cuff microphone.

The combination of auscultatory measurement and sophisticated algorithms for artifact suppression yields precise measurement values – even at high loads.

The ergometer can be equipped with an SpO2 measurement module for precise monitoring of the patient’s oxygen saturation during exercise ECG testing. A wide selection of suitable SpO2 sensors is available in different sizes.

The adapter enables horizontal shifting of the saddle by approx. 120 mm. In conjunction with the adjustable pedal cranks and the dual handlebar adjustment (height and tilt), this makes it possible to set the most ergonomically effective training position for every patient.

The length of the pedal cranks can be adjusted in a range from 12 to 17 cm.

Extra-wide pedals with adjustable pedal straps (ratchet mechanism).

As an alternative to the standard handlebar, ergometers used for performance diagnostics can also be equipped with a triathlon handlebar that is adjustable over a wide range. Together with the adjustable pedal cranks and the horizontal seat adjustment, this allows for setting up an optimal test/training position for test subjects.

The current saddle height is shown on the display—an important advantage for repeated examinations or if the device is used for training.

Uninterrupted, reliable acquisition of the heart rate is indispensable for conducting heart rate-controlled training. The digital ergoline chest strap allows for the unique allocation of the strap to a patient—the “inadvertent” transmission of another person's strap signals is completely ruled out.

Up to 10 different training profiles (all forms of training) can be specified with the ergoline training chip card. The opticare basic PC software writes all training parameters, including warm-up and recovery phase, to the chip card to be read by the ergometer (control terminal Touch). At the end of a training session, the ergometer writes the entire course of the training to the chip card, which allows for saving the data of up to 60 training sessions. Once the data on chip card is downloaded to the database of the opticare basic software, all training sessions are available for documentation and analysis.

Options/accessories

  • Option

    Automatic blood pressure measurement

    • module for automatic blood pressure measurement
    • integrated in the ergometer (type P or K)
    • cuff connection in the control terminal
    • standard cuff included
    • different cuff sizes available

    Part number: erg161.901


    Expanded control terminal "K"

    • large graphic display
    • integrated receiver for heart rate chest strap
    • ergometry
    • pulse-controlled training
    • constant-load training
    • interval training
    • performance test protocols

    Part number: erg161.905


    Measurement of oxygen saturation (with type "K" only)

    • module for measurement of oxygen saturation
    • integrated in the ergometer
    • sensor connection in the control terminal
    • including SoftTip® sensor
    • different sensors available

    Part number: erg161.907

  • Accessories

    Set of leadwires for rehabilitation, snap fastener

    • 3 electrode leadwires for disposable electrodes
    • length 1.30 m

    Part number: erg705.081


    Set of leadwires for rehabilitation

    • 3 electrode leadwires with Ag/AgCl contact
    • length 1.30 m
    • system 2000 connector
    • including lead labeling (L, R, N)

    Part number: erg705.082


    ergofluid electrode spray, bottle (12 pieces)

    • high-quality electrode spray
    • contents 12 spray bottles, 250 ml each

    Part number: erg105.524


    Heart-rate chest strap "POLAR"

    • acquisition and transmission of the heart rate
    • for ergoselect ergometers with control terminal "K"

    Part number: erg424.016


    Horizontal saddle adjustment

    • Special attachment for seat post
    • horizontal adjustment possible
    • including quick-release adapter (without saddle)

    Part number: erg705.084


    Pediatric seat

    • special, small saddle for children (22 mm receptacle)

    Part number: erg471.110


    Anti-tipping device 1 (plate)

    • screw-on base plate
    • better stability (protection against tipping)
    • 2 mounting positions

    Part number: erg705.300


    Anti-tipping device 2 (bracket for securing to the floor)

    • special bracket for securing the bike to the floor
    • better stability (protection against tipping)
    • including special mounts, screws, plug anchors

    Part number: erg705.306


    Cuff, large (metal D-ring)

    • cuff for extra strong arms
    • for arm circumference of 32 to 42 cm

    Part number: erg705.090


    Cuff, pediatric (metal D-ring)

    • pediatric cuff
    • for arm circumference of 17 to 26 cm

    Part number: erg705.092


    Cuff, standard (metal D-ring)

    • standard size
    • for arm circumference of 24 to 32 cm

    Part number: erg705.088


    Pedals

    • set, left and right

    Part number: erg705.743


    Racing saddle

    • special, narrow saddle (22 mm receptacle)

    Part number: erg471.107


    Saddle adjustment for pediatric ergometry

    • special attachment for seat post
    • can be adjusted forwards and down
    • including quick-release adapter (without seat)
    • adjustable cranks + pediatric seat recommended
    • up to a maximum of 60 kg of body weight

    Part number: erg705.080


    Quick-release adapter for standard saddle

    • enables rapid saddle exchange

    Part number: erg705.308


    Standard saddle

    • comfortable, wide seat for adults

    Part number: erg705.024


    Triathlon handlebar

    • adapter for control terminal that can be adjusted for length
    • triathlon handlebar, complete

    Part number: erg705.087


    Adjustable pedal cranks

    • adjustment range of 75 to 175 mm
    • set (right + left)

    Part number: erg705.905


    Adjustable pedal cranks

    • adjustment without tools
    • adjustment range of 75 to 175 mm
    • including pedal shoes
    • set (right + left)

    Part number: erg705.942

Additional views

Technical details

Product Information

Dimensions and weight

Ergometer

Length: 90 cm
Width: 46 cm (width of handlebar approx. 53.5 cm)
Height: 90 – 135 cm (see illustration)
Weight: approx. 67 kg

Ergometer with packaging

Length: 107 cm
Width: 60 cm
Height: 146 cm
Weight: approx. 84 kg
Further information
For further technical specifications, please click here

User manual and downloads

The user manual, documents, software and technical specifications can be downloaded here – free of charge.
