Reclining ergometers

ergoselect 10

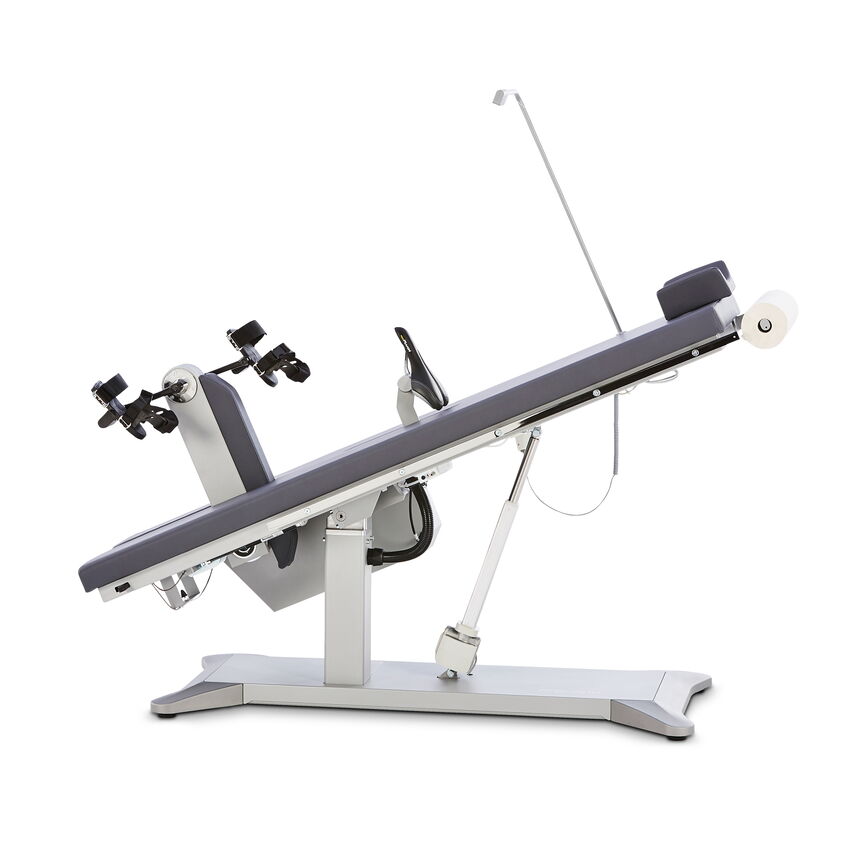

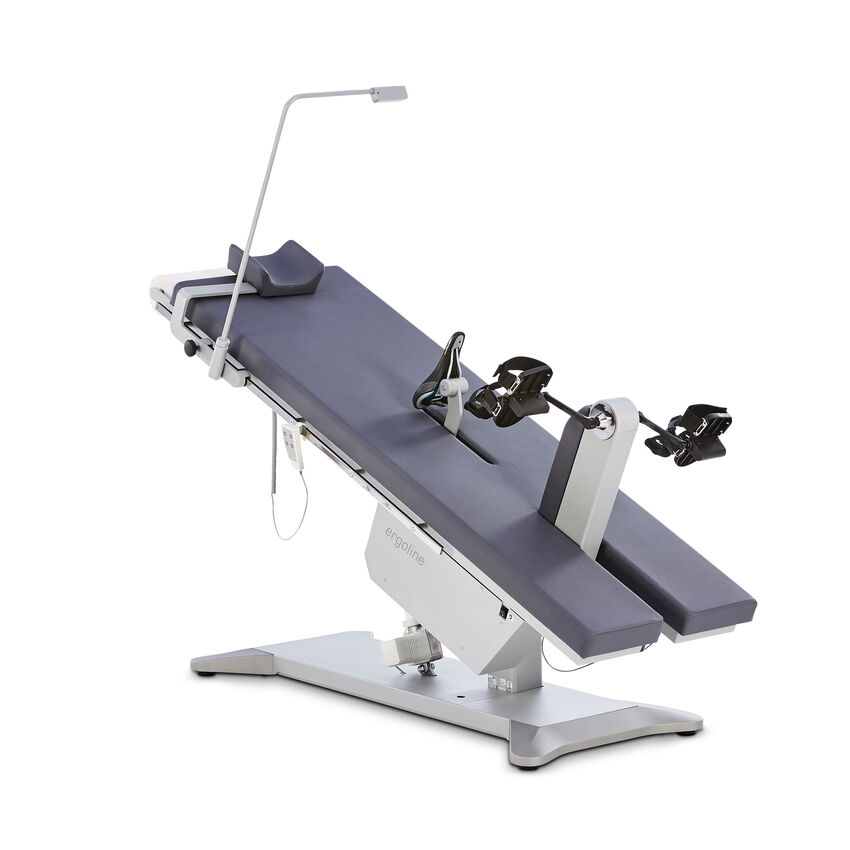

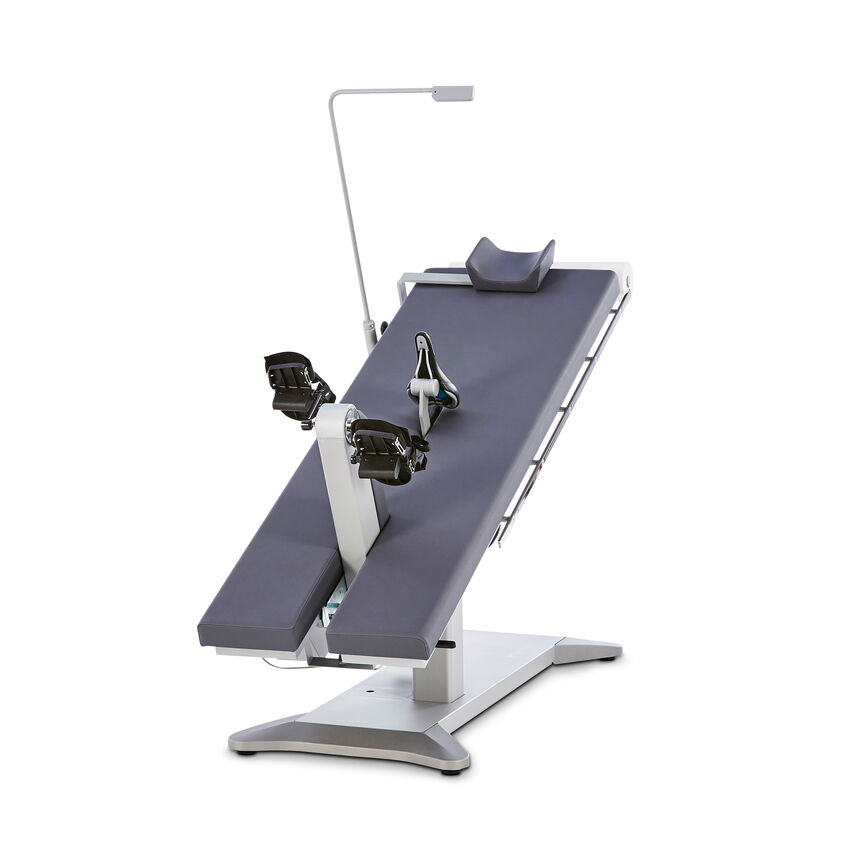

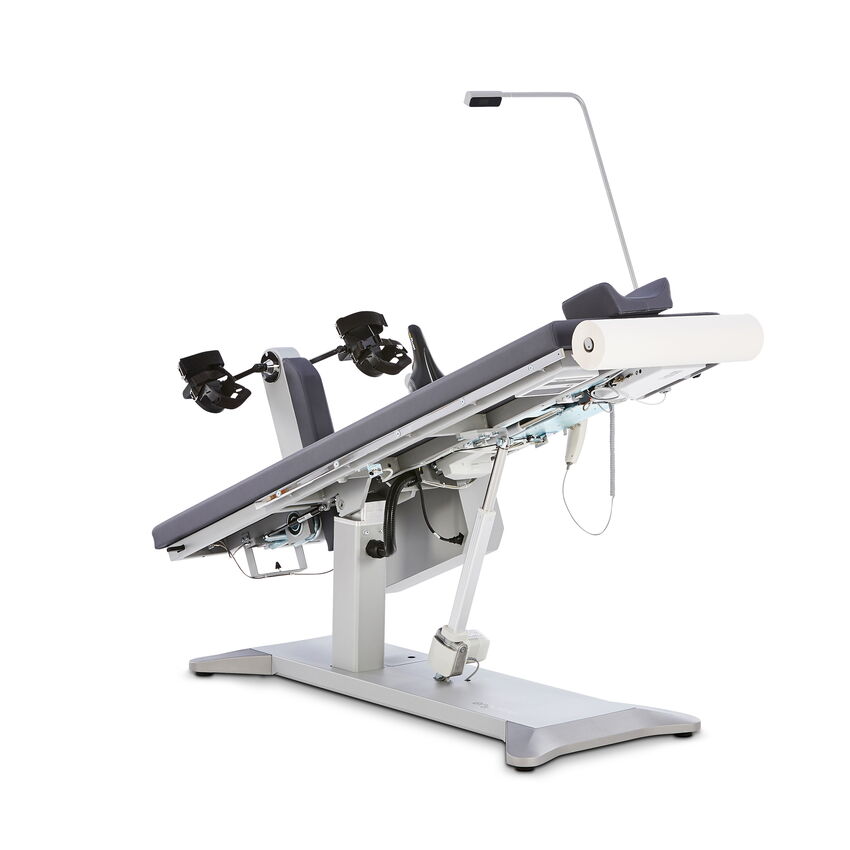

The half-reclining ergometer ergoselect 10 is a multi-function device that offers a high level of safety during the ergometric test, particularly for older patients. The couch surface can be adjusted from a horizontal position up to a 45° angle. The inclination angle and seat position are set via an electrical drive by remote control. With just a few movements, the unit can be converted to a comfortable examination couch – the ergometry unit is lowered into the couch area and the seat is simply removed.

  • patient weight up to 200 kg
  • horizontal inclination up to 45°
  • remote motor control (wireless option)
  • ergometry unit folds away easily
  • whisper-quiet belt drive
  • load range from 6 to 450 watts (optionally up to 1000 watts)
  • high-quality upholstery fabric
  • choice of upholstery colors available
    view color choices
  • universal interfaces
  • wide range of expansion options
Further information on the product can be found here

Details

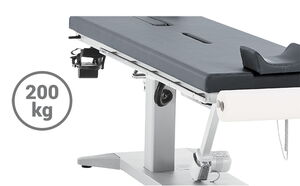

The stable base frame and the vibration-free design guarantee the highest level of safety and enable the use of the reclining ergometer with morbidly obese patients.

The comfortable headrest with lateral support can be moved over a wide range for easy adjustment to the patient’s body size.

The laterally attached speed display is easy to read in any position and can be folded away when not in use.

A single hand movement turns the ergoselect 10 into a full-fledged comfortable examination couch – simply unlock the ergometry unit and lower it into the couch surface.

Thanks to the use of high-quality electronic measuring systems and reliable components, our devices don’t just meet the standard specifications for medical ergometers, but far exceed them – over the entire load range from 6 to 1000 watts.

Moreover, the special two-stage belt drive ensures whisper-quiet operation during an ergometric test.

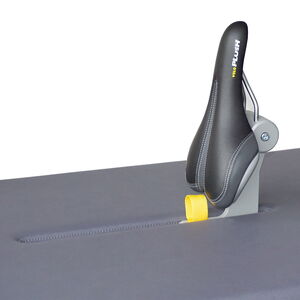

The seat can easily be pulled off, without leaving any inconvenient rails or mounting elements in the couch surface.

Various seat adapters allow for adjustment to special patient sizes.

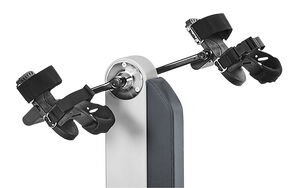

The specially developed pedal shoes secure the patient’s feet at the ergometry unit and reliably prevent slipping off the pedal cranks, even in lateral position.

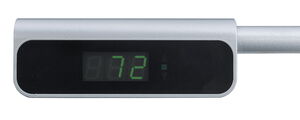

During the ergometric test, the patient display shows the current speed for control, while additional icons warn against overly low or high speed.

The display is directly connected to the headrest and can be folded away laterally when not in use.

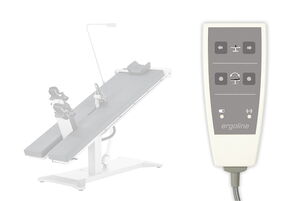

The examination position and seat settings can be conveniently adjusted via remote control; a wireless version is available on request.

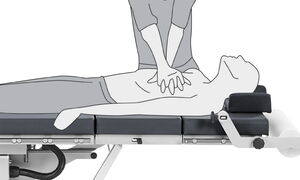

The completely vibration-free design of the reclining ergometer even allows for performing chest compressions in horizontal position directly on the couch surface without the need to move the patient.

All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.

ergoline ergometers offer a wide range of connection options. In addition to the standard RS-232 and USB interface, wireless connections via Bluetooth or WLAN are available as well.

The high-quality upholstery fabric with its fine microstructure is an ideal choice: It is durable, easy to disinfect, and antibacterial, to name just a few of the outstanding material properties.

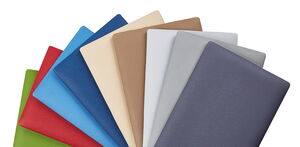

The pad cushions are available in many colors to match any practice or hospital interior design.

Options/accessories

  • Control terminals

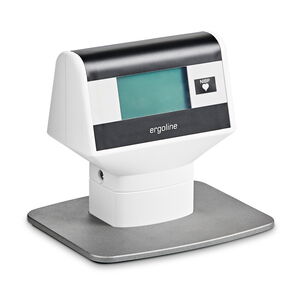

    Control terminal 'Ergometry' (type "M"), external

    • control terminal M with small stand
    • LCD display

    To be specified on order!

    Part number : erg193.812


    Control terminal 'Ergometry' (type "P"), external

    • control terminal P with small stand
    • LCD display
    • 10 integrated exercise test protocols (user-programmable)
    • manual exercise test

    To be specified on order!

    Part number : erg193.803

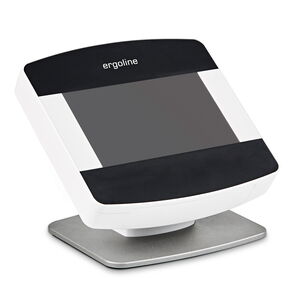

    Control terminal 'Color/Touch' (type "T"), external

    • control terminal T with small stand
    • WVGA color touch display (7" / 17.8 cm)
    • 10 integrated exercise test protocols (user-programmable)
    • 10 integrated training / performance test protocols (user-programmable)
    • manual exercise test

    To be specified on order!

    Part number : erg193.804

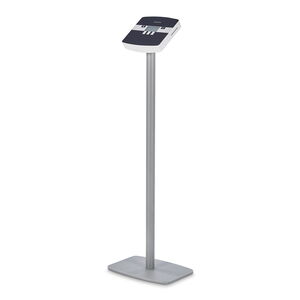

    Stand, high, for external control terminal

    • elegant, sturdy stand made of (coated) steel
    • height 100 cm
    • for all external control terminals

    To be specified on order!

    Part number : erg193.813

  • Option

    Automatic blood pressure measurement

    • module for automatic blood pressure measurement
    • integrated in the ergometer (type P or T)
    • arm rest, curved, with bracket
    • standard cuff included
    • different cuff sizes available

    Part number : erg193.801


    Automatic oxygen saturation measurement

    • module for measurement of oxygen saturation
    • continuous measuring method
    • integrated in control terminal
    • sensor connection in control terminal (P or T)
    • including SoftTip® sensor

    Only for control terminals P and T, external!

    Part number : erg193.802


    Bluetooth interface (integrated)

    • integrated Bluetooth interface
    • for communication with PC-based ECG systems

    To be specified on order!

    Part number : erg193.805


    Set of twin casters, 75 mm, with lock

    • 6 twin casters for easy maneuvering of the reclining ergometer
    • caster diameter 75 mm
    • safe set-up with individually locking casters
    • can be added later on

    Increases couch height by approx. 10 cm!

    Part number : erg193.810

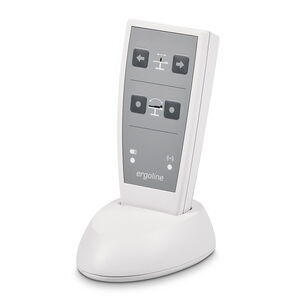

    Wireless remote control

    • wireless remote control (instead of wired remote control)
    • radio receiver for motor control

    To be specified on order!

    Part number : erg193.807

    Load System 6 – 1000 Watts

    • increases the performance of the ergometry unit to 1000 watts

    To be specified on order!

    Part number : erg193.824


    Custom color for upholstery

    To be specified on order!

    Part number : erg193.809

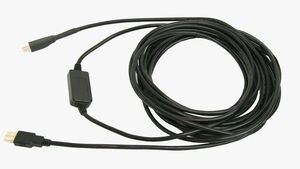

    USB cable (active) 7 m

    • active USB cable for ergoselect 10 / 12
    • length 7 m

    Part number : erg705.982


    WLAN interface (integrated)

    • integrated WLAN interface
    • for communication with PC-based ECG systems

    To be specified on order!

    Part number : erg193.806

  • Accessories

    Arm rest, flat, with bracket

    • flat arm rest for blood pressure measurement
    • including attachment (holder) for accessory rail
    • can be added later on

    Part number : erg705.958

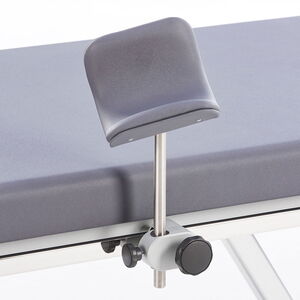

    Arm rest, curved, with bracket

    • curved arm rest for blood pressure measurement
    • including attachment (holder) for accessory rail
    • can be added later on

    Part number : erg705.957

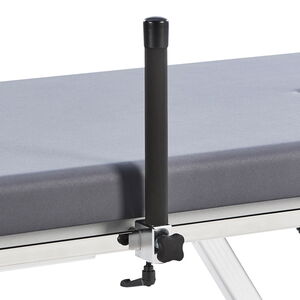

    Handle with support

    • additional grab handle
    • including attachment (holder) for accessory rail
    • can be added later on

    Part number : erg705.956


    IV pole, complete with support

    • infusion holder, multiple adjustments possible
    • including attachment (holder) for accessory rail
    • can be added later on

    Part number : erg705.959

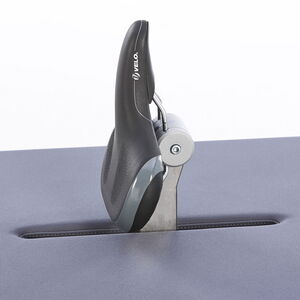

    Seat, wide, with short slide-in post

    • comfortable, wide seat for adults
    • can be added later on

    Part number : erg705.985

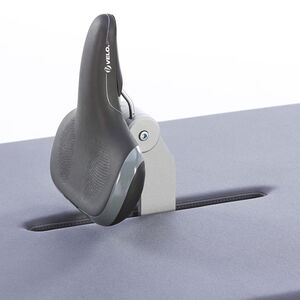

    Seat, wide, with standard slide-in post

    • comfortable, wide seat for adults
    • can be added later on

    Part number : erg705.979


    Seat, standard, with short slide-in post

    • can be added later on

    Part number : erg705.984

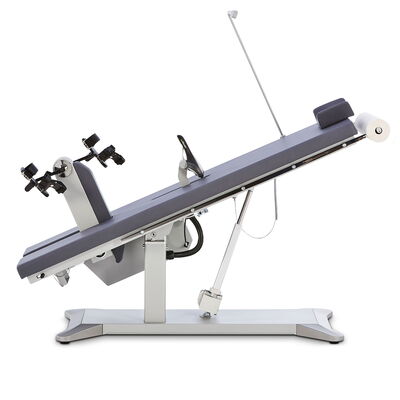

Additional views

Technical details

Product Information

Dimensions and weight

Ergometer

Length: 220 cm
Width: 90 cm
Height: 180 cm (max.)
Weight: approx. 200 kg

Ergometer with packaging

Length: 230 cm
Width: 98 cm
Height: 110 cm
Weight: approx. 218 kg

Further information
For further technical specifications, please click here

User manual and downloads

The user manual, documents, software and technical specifications can be downloaded here – free of charge.
