- speed: 0.0 to 22.0 km/h
- slope: 0 to 25%
- accuracy class: A (high accuracy)
in accordance with EN 957-6 - large running surface (50 cm x 150 cm)
- low step-on height
- patient weight up to 250 kg
- ECG connection/interfaces:

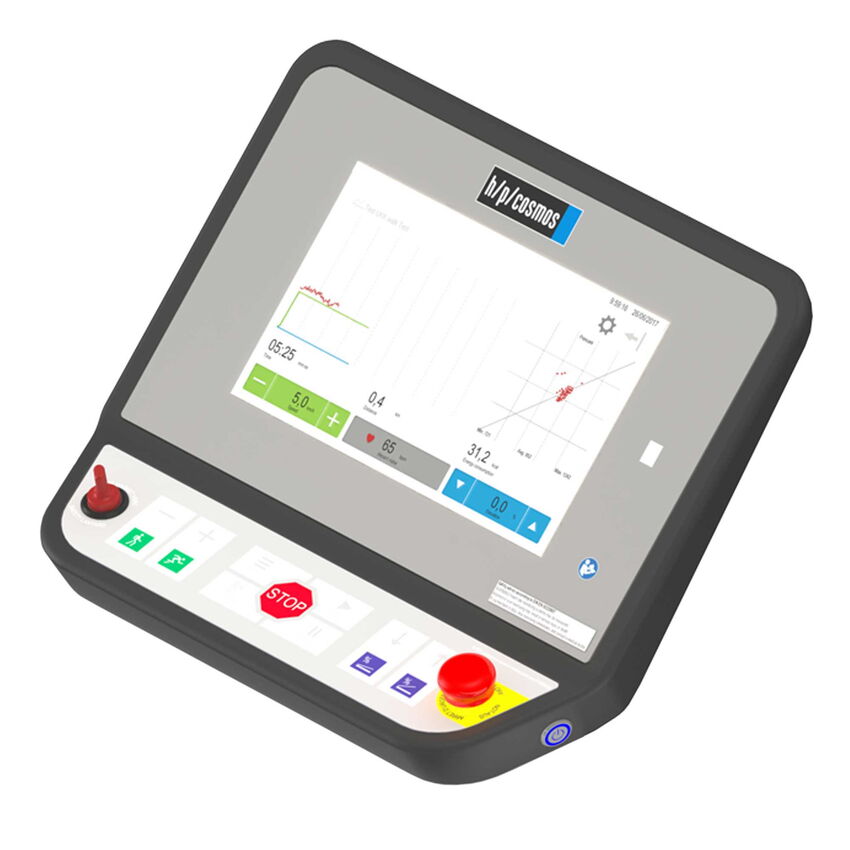

h/p/cosmos coscom / trackmaster - control terminal with keypad and display

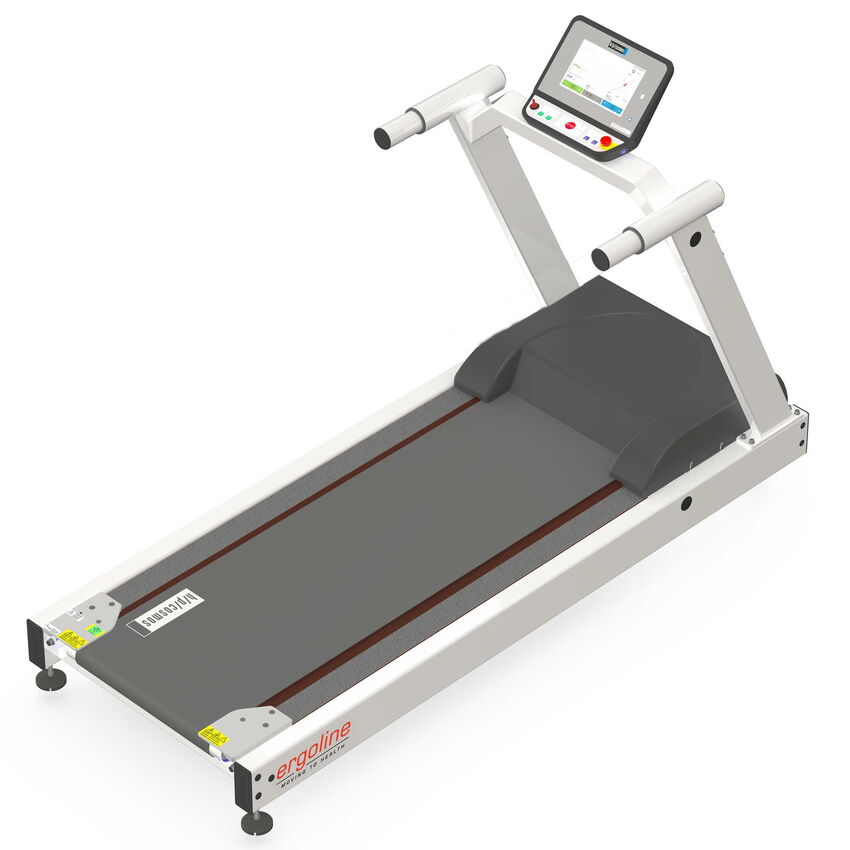

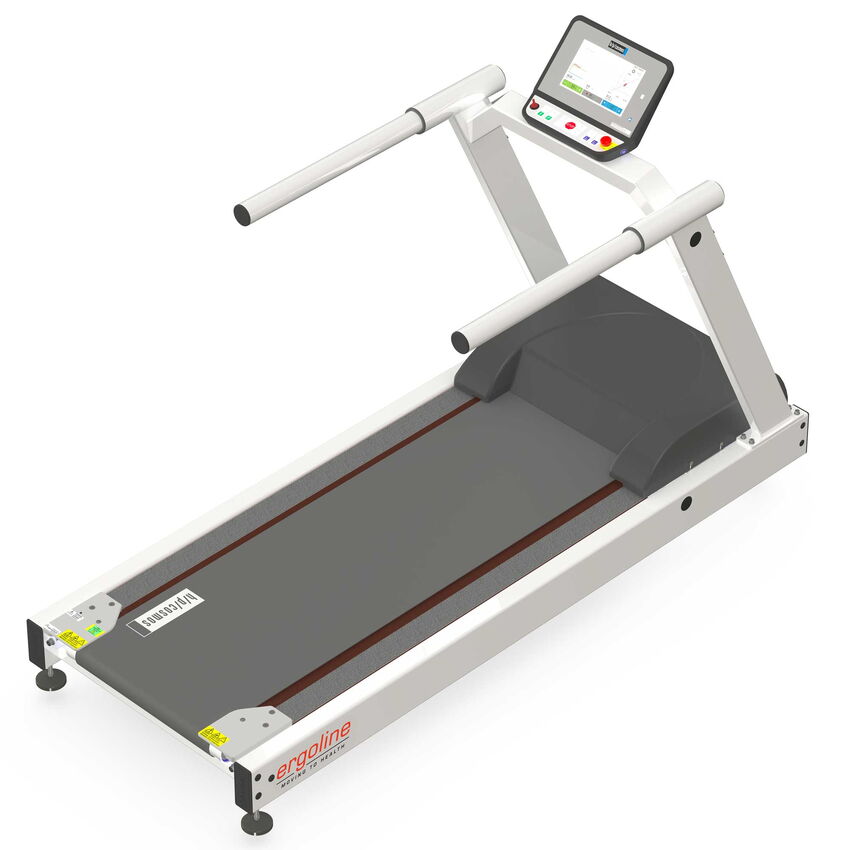

Treadmill
ergosprint T
- speed: 0.0 to 22.0 km/h
- slope: 0 to 25%
- accuracy class: A (high accuracy)
in accordance with EN 957-6 - large running surface (50 cm x 150 cm)
- low step-on height
- patient weight up to 250 kg
- ECG connection/interfaces:
h/p/cosmos coscom / trackmaster - control terminal with keypad and display
Details
Manueller Modus, Profil-Modus, Cardio-Modus, Trainings-Modus.

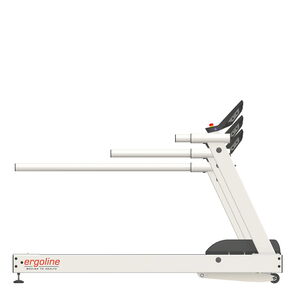

Alternativ zur Standardlänge (mitte) sind entweder kurze oder lange Handläufe erhältlich (Stecksystem).

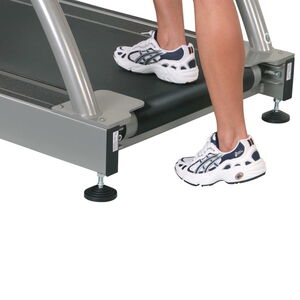

Eine niedrige Aufstiegshöhe erleichert den Zugang zur Lauffläche.

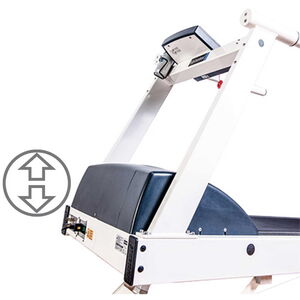

Slope from 0 to 25%

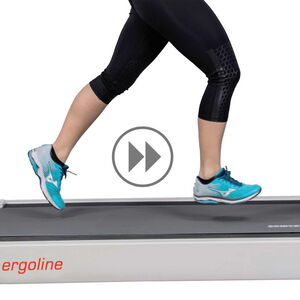

Treadmill speed from 0.0 to 22 km/h.
Options/accessories
-
Option
Chest belt system size XXS
Also available in sizes XS to XL
size XS:size S:size M:size L:size XL:Part number 181303Part number 181304Part number 181305Part number 181306Part number 181307Part number : 181302
Treadmill reverse direction switch
- Max. reverse speed: 5 km/h
Part number : 181210
Pediatric handrail (long version)
- Children’s handrail with cross bar and side bar
- Adjustable handle height
Part number : 181208
Pediatric handrail (standard version)
- Children’s handrail with cross bar and side bar
- Adjustable handle height
Part number : 181207

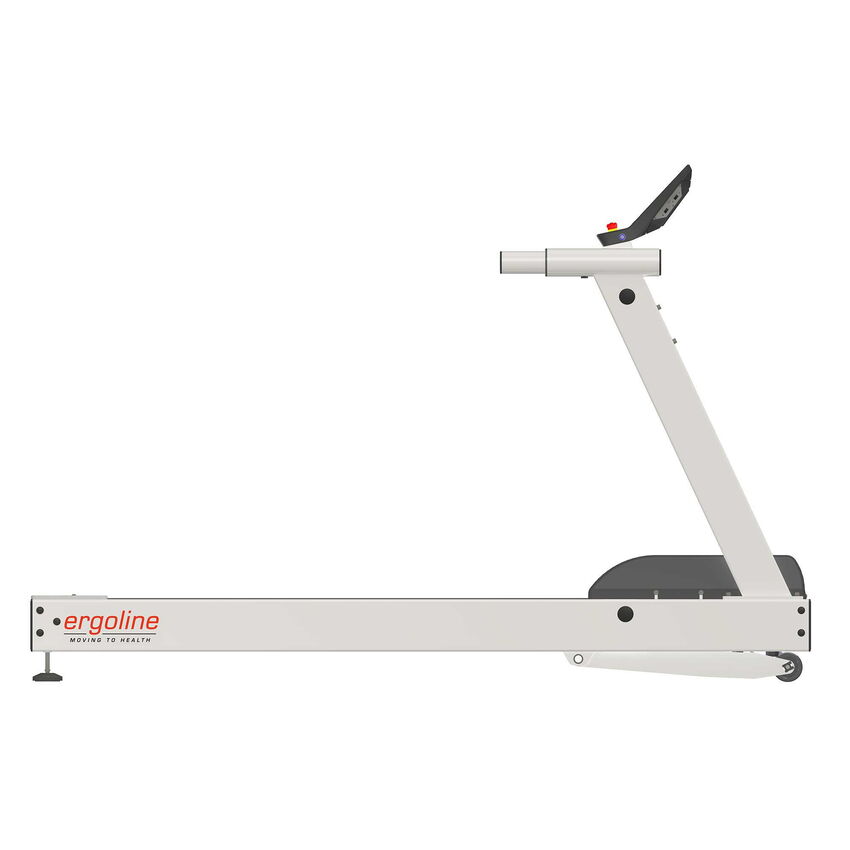

Short, plug-in handrail
- Always requires handrail cross bar 181211!
Part number : 181212

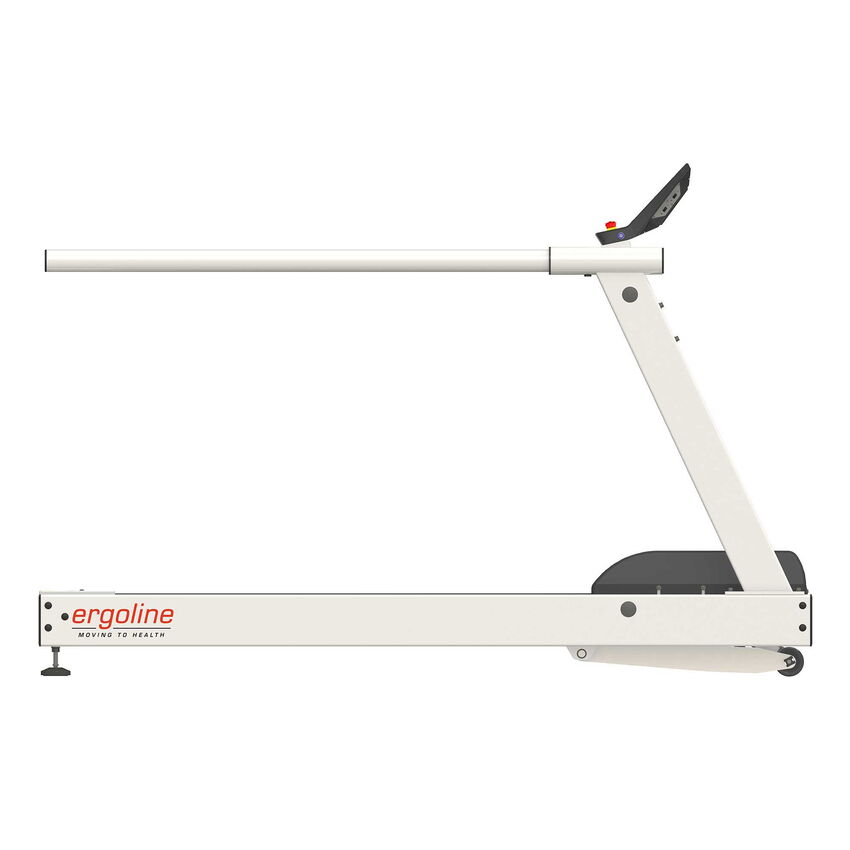

Long hand rails
• for more patient safety
• for easy access to the running surfacePart number : 181201
Motor brake
- Prevents manual belt movement at target speed = “0” (e.g. treadmill stop or pause) with exception of a few cm
Part number : 181215
Ramp for wheelchair
- For pushing a patient wheelchair onto the treadmill
Part number : 181213

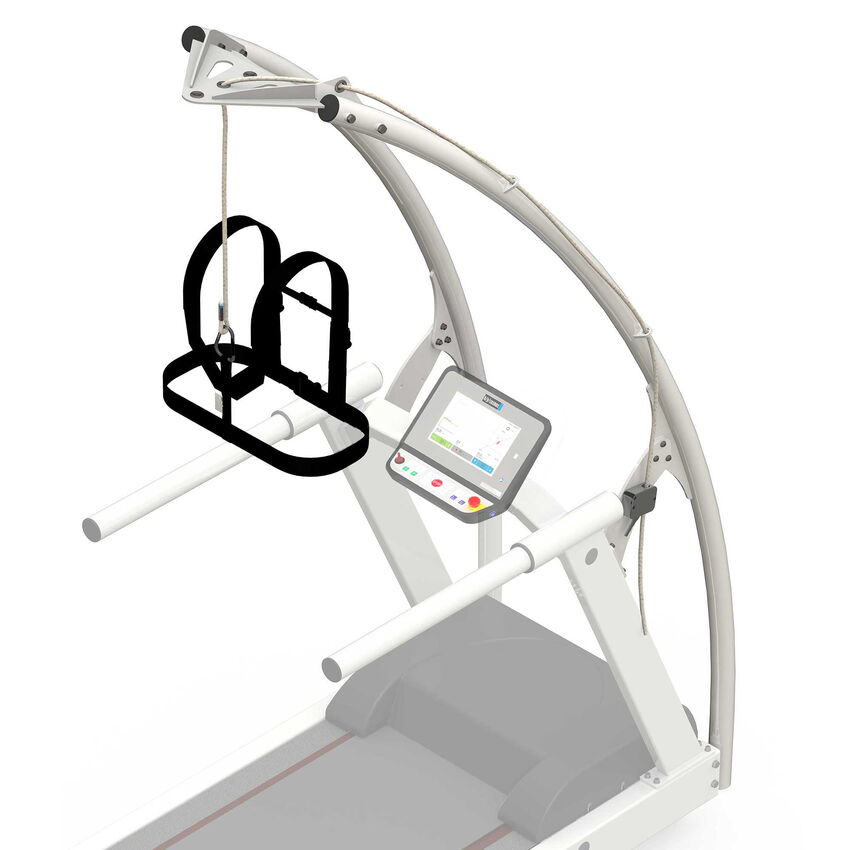

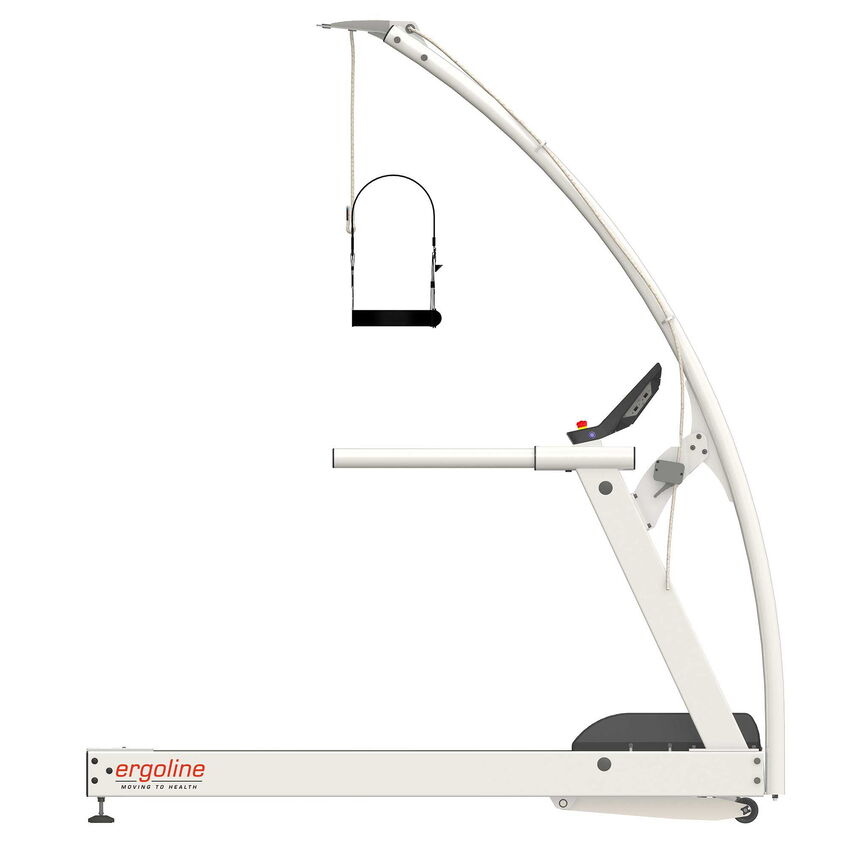

Safety arch with chest belt harness size M
• for more patient safety
• incl. chest belt harness size MPart number : 181301
Additional views
Technical details
Product Information

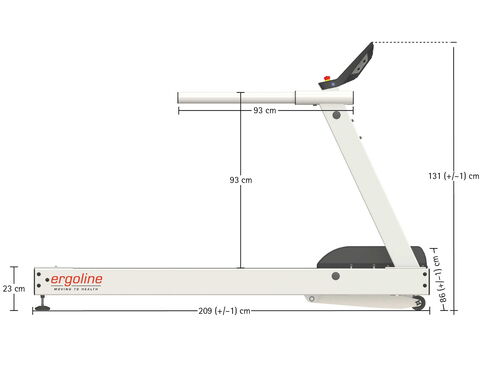

Dimensions and weight
Treadmill
| length: | 209 (+/– 1) cm |
| width: | 86 (+/– 1) cm |
| height: | 131 (+/– 1) cm |
| weight: | ca. 211 kg |
Treadmill with packaging (standard)
| length: | 230 cm* |
| width: | 109 cm* |
| height: | 135 cm* |
| weight: | approx. 275 – 300 kg * Dimensions of standard device (values may vary depending on accessories and packing type) |
User manual and downloads
The user manual, documents, software and technical specifications can be downloaded here – free of charge.
