Special ergometers

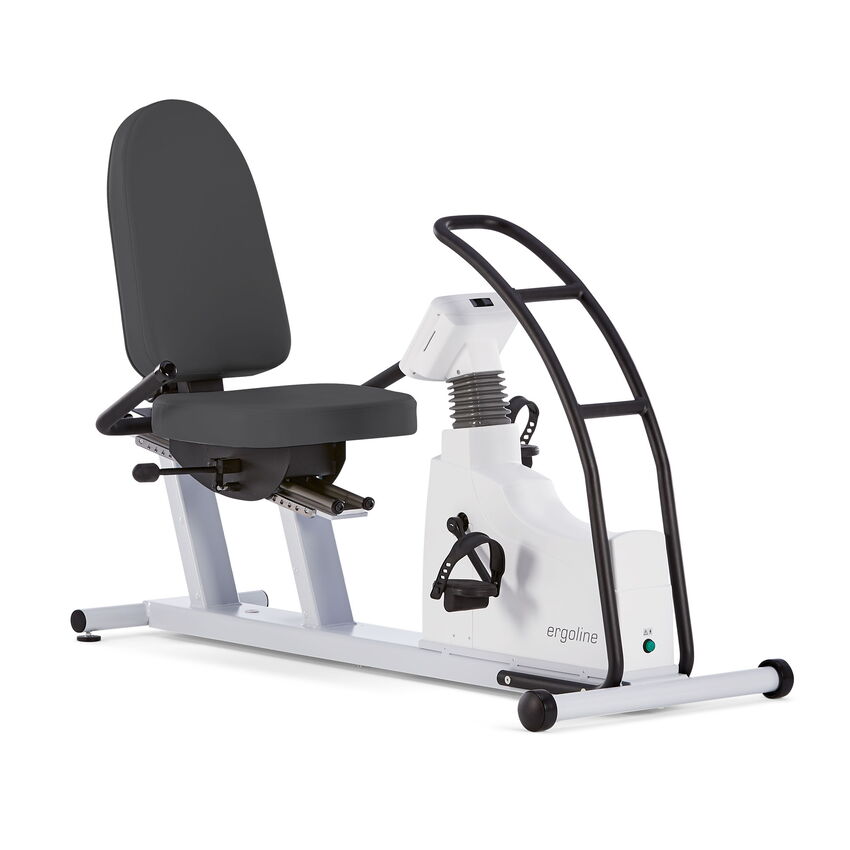

ergoselect 600

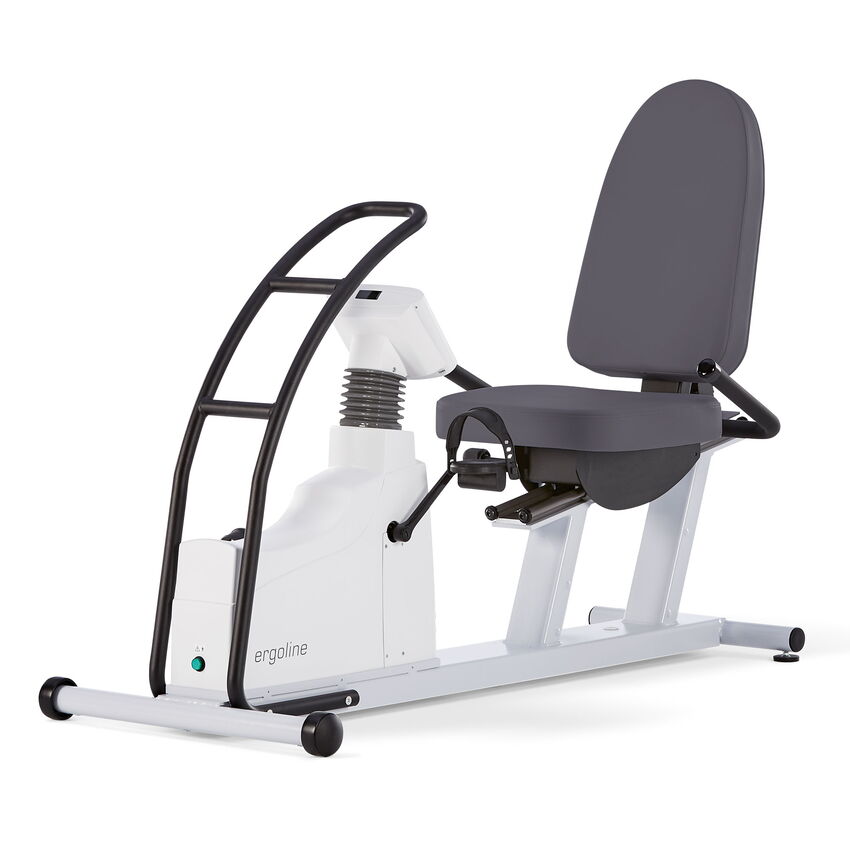

Constructed and approved for a patient weight of up to 300 kg, the ergoselect 600 makes it possible to conduct exercise tests and cardiovascular training, including with morbidly obese patients. The ergoline recumbent ergometer is also the right exercise and training unit for elderly or disabled patients. Details such as the 3-way adjustable backrest, special pedal shoes with adjustable pedal spacing and additional cushions that increase the distance between the pedal axis and seat surface enable optimal adjustment to every individual patient.

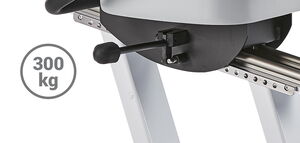

  • patient weight up to 300 kg
  • stable support handle
  • low step-through frame
  • 3-point backrest adjustment
  • special pedal shoes
  • excellent stability
  • load unit from 6 to 1000 watts
  • user-programmable exercise test protocols
  • universal interfaces
  • wide range of expansion options
Further information on the product can be found here

Details

The stable, high-quality design guarantees trouble-free operation, even with continuous use.

A sturdy support bracket made of tubular steel gives patients a secure hold while moving on and off the ergometer. The powder-coated surface is impact and scratch-resistant, hygienic and resistant to disinfectants and cleaning agents.

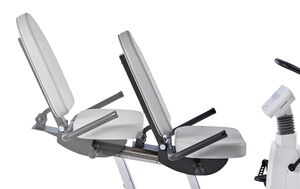

The seat position can be quickly and easily adjusted in a wide range – including while sitting – by simply lifting the locking lever.

The high backrest provides ideal relief of the lumbar and sacral area during training or ergometric tests.

The inclination angle of the backrest can be adjusted as well.

The seat height can be simply adjusted to the corresponding patient size by adding seat cushions.

The use of laterally adjustable pedal shoes allows for optimal pedal distance settings for every patient.

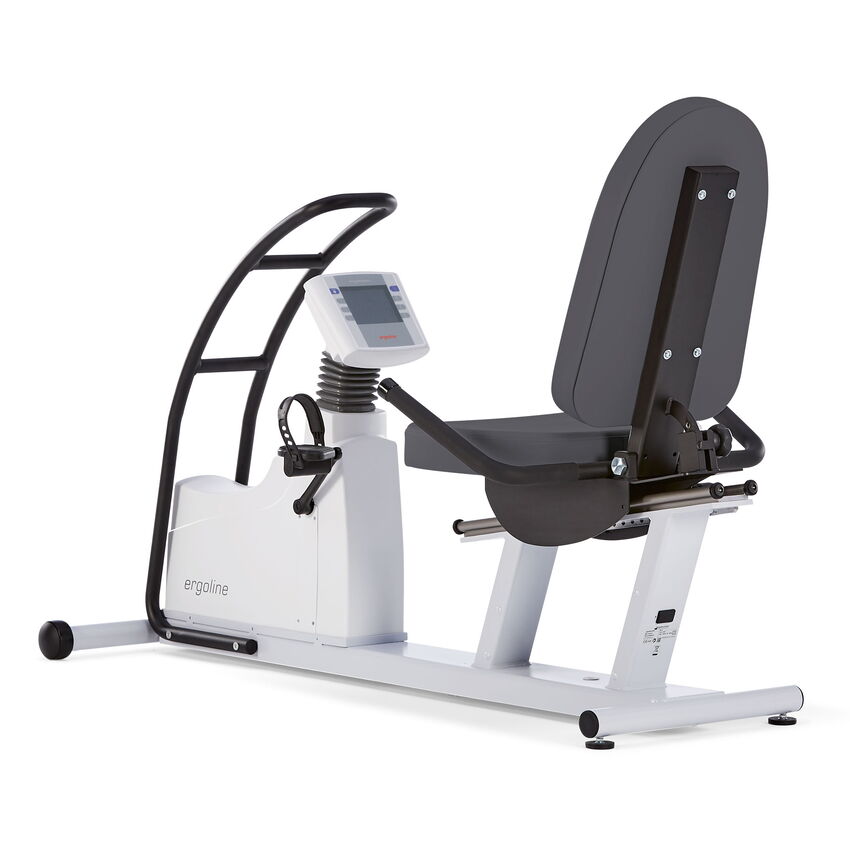

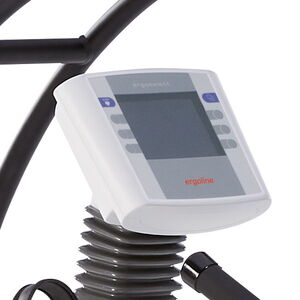

All key data in a single display.

The LC display stands out for its excellent readability.

The intuitive user interface enables the easy performance of custom ergometric protocols or manual load adjustment.

Thanks to the use of high-quality control electronics and reliable components, our devices don’t just meet the standard specifications for medical ergometers, but far exceed them – over the entire load range from 6 to 1000 watts.

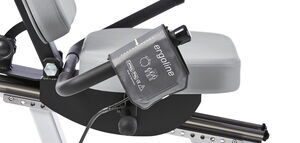

The optionally integrated, automatic blood pressure measurement works with a specifically developed cuff microphone.

The combination of auscultatory measurement and sophisticated algorithms for artifact suppression yields precise measurement values – even at high loads.

All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.

ergoline ergometers offer a wide range of interfaces for this purpose. In addition to the standard RS-232 and USB interface, analog and wireless connections via Bluetooth or WLAN are available as well.

Options/accessories

  • Option

    Automatic oxygen saturation measurement

    • module for measurement of oxygen saturation
    • continuous measuring method
    • integrated in control terminal
    • sensor connection in control terminal (P or T)
    • including SoftTip® sensor

    Part number : erg161.902


    Automatic blood pressure measurement

    • module for automatic blood pressure measurement
    • integrated in the ergometer (type P or K)
    • cuff connection in the control terminal
    • standard cuff included
    • different cuff sizes available

    Part number : erg161.901


    Expanded control terminal "K"

    • large graphic display
    • integrated receiver for heart rate chest strap
    • ergometry
    • pulse-controlled training
    • constant-load training
    • interval training
    • performance test protocols

    Part number : erg161.905


    Measurement of oxygen saturation (with type "K" only)

    • module for measurement of oxygen saturation
    • integrated in the ergometer
    • sensor connection in the control terminal
    • including SoftTip® sensor
    • different sensors available

    Part number : erg161.907

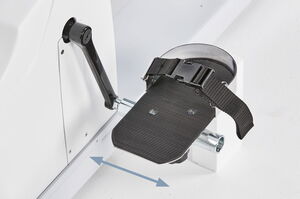

    Pedal shoes, variable distance to axle

    • increased pedal spacing
    • adjustable
    • pair (right + left)
    • can be added later on

    Part number : erg705.314

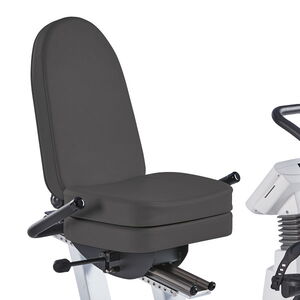

    Additional cushion

    • seat cushion, 7 cm thick
    • increases the distance to the pedal axis
    • Velcro fastening

    Part number : erg705.317

  • Rehabilitation accessories

    ECG amplifier (1 channel), integrated

    • ECG amplifier (1 channel)
    • connection block for 3 ECG leadwires / suction tubing
    • 3 electrode leadwires (snap fastener)
    • requires additional expanded control terminal "K" Touch (erg161.903)

    Part number : erg161.916


    Suction electrode system, integrated

    • suction system integrated in the control unit
    • 3 plug-in silicone suction leads with Ag/AgCl suction cups
    • requires control terminal "K" (erg191.903)
    • requires additional ECG amplifier, integrated (erg191.903)

    Part number : erg161.918

  • Accessories

    Set of leadwires for rehabilitation, snap fastener

    • 3 electrode leadwires for disposable electrodes
    • length 1.30 m

    Part number : erg705.081


    ergofluid electrode spray, bottle (12 pieces)

    • high-quality electrode spray
    • contents 12 spray bottles, 250 ml each

    Part number : erg105.524


    Heart-rate chest strap "POLAR"

    • acquisition and transmission of the heart rate
    • for ergoselect ergometers with control terminal "K"

    Part number : erg424.016


    Cuff, large (metal D-ring)

    • cuff for extra strong arms
    • for arm circumference of 32 to 42 cm

    Part number : erg705.090


    Cuff, standard (metal D-ring)

    • standard size
    • for arm circumference of 24 to 32 cm

    Part number : erg705.088

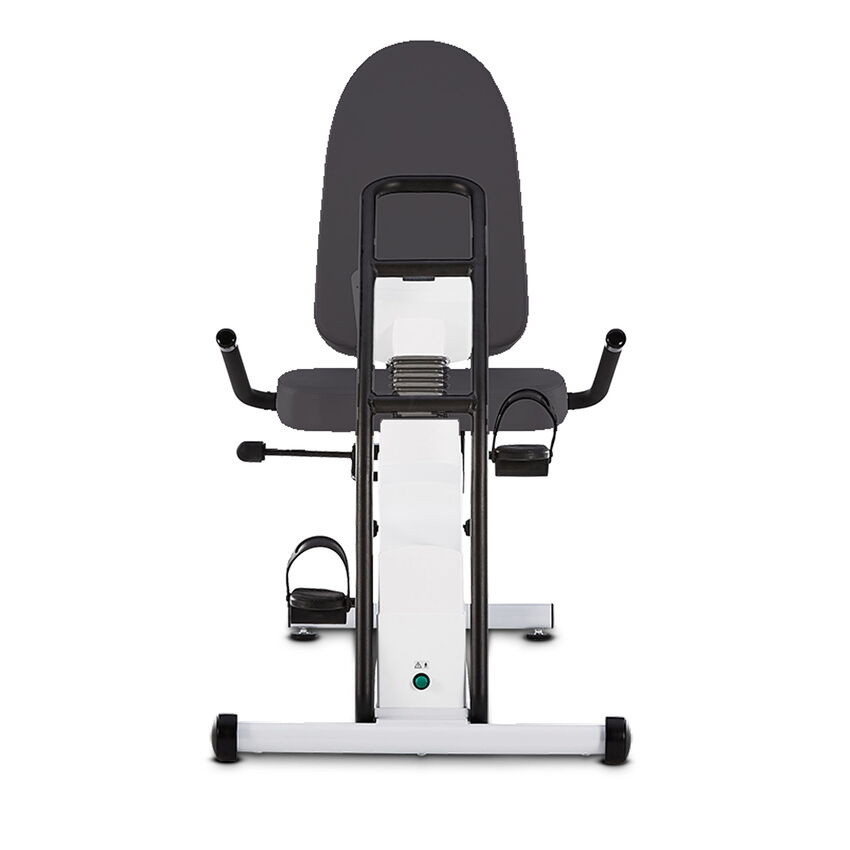

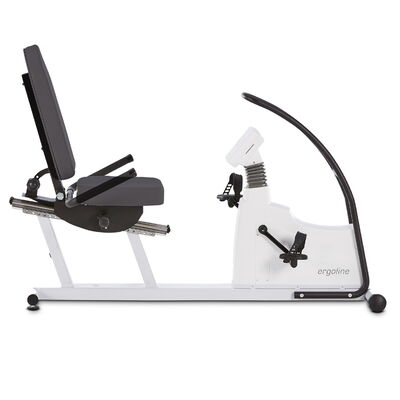

Additional views

Technical details

Product Information

Dimensions and weight

Ergometer

Length: 165 cm
Width: 75 cm
Height: 108 cm
Weight: 86 kg

Ergometer with packaging

Length: 209 cm
Width: 80 cm
Height: 157 cm
Weight: approx. 100 kg

Further information
For further technical specifications, please click here

User manual and downloads

The user manual, documents, software and technical specifications can be downloaded here – free of charge.
