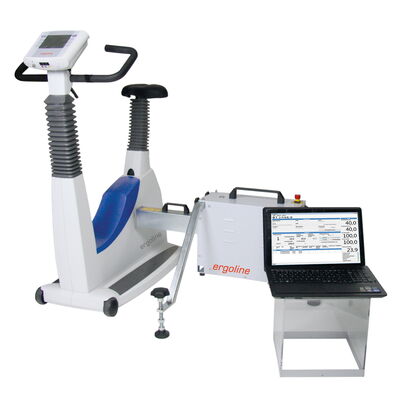

ergotest 550

The mobile test bench ergotest 550—in proven ergoline quality—stands out for its excellent performance values and its simple intuitive operation thanks to test software with integrated database. Because of its low weight, the ergotest 550 is the ideal device for mobile servicing after repairs and for performing the required regular inspections of measuring systems. ergotest 550 is of course available with an official certificate of calibration by an accredited test laboratory—a mandatory requirement for using the test bench for inspections of the measuring systems (MTKs) according to §11 (3) MPBetreibV (Medical Device Operator Ordinance) in Germany.

  • performance up to 550 watts in continuous operation
  • high precision torque measurement
  • easy transport because of its light weight
  • suitable for bicycle and couch ergometers (interchangeable support legs)
  • safe operation due to sensors that monitor the protective cover of the axle
  • automatic adjustment/calibration of ergoline ergometers (ergoselect series)
  • switchable between clockwise and counter-clockwise rotation
  • maintenance and calibration from a single source
  • ergoline quality "Made in Germany"
  • user-friendly and intuitive test software
  • sturdy transport cases available for test bench and accessories
  • calibration by ergoline or an accredited test laboratory
Further information on the product can be found here

Details

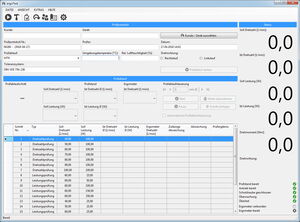

The ergotest test bench software (Windows®) is part of the ergoline test bench. This software controls the test bench and is used to perform the measurements.
In addition to extensive configuration options for test reports and test routines, the software supports automated test procedures, which even comprises the fully automatic load calibration of ergoline ergometers (ergoselect series)—for economic and efficient servicing on site.
The integrated database simplifies the management of customers and of the equipment as well as the reporting of the performed ergometer tests.

The case for the test bench is equipped with castors, the case for the accessories has three handles.

The cases are also available separately.

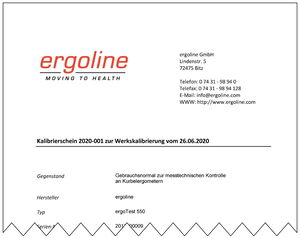

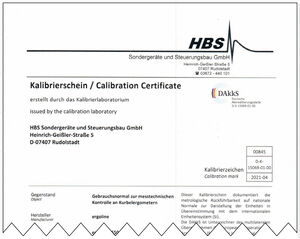

The test stand is calibrated by an accredited test laboratory (HBS or DAkkS) to achieve maximum precision and measuring accuracy and is returned with a test/calibration certificate.

The test stand is calibrated by ergoline to achieve maximum precision and measuring accuracy and is returned with a test/calibration certificate.

Options/accessories

  • Option

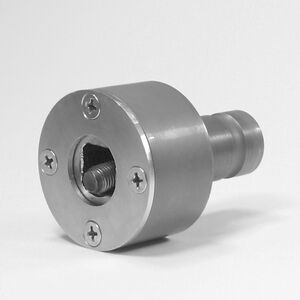

    Crank connecting flange M8 x 1.25

    • compatible with Elmed EGT
    • compatible with custo control ergometers

    Part number : erg705.898

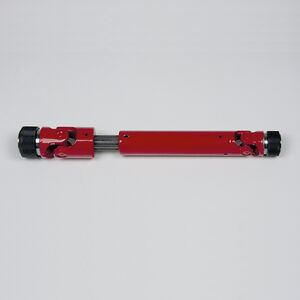

    Drive shaft with hexagon socket

    • compatible with Lohde pedal adapters
    • compatible with HBS pedal adapters

    Part number : erg705.897

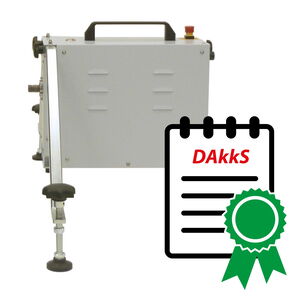

    erg175.010_pruefstand-ergotest-550-kalibriert-durch-akkreditiertes-prueflabor-dakks.jpg

    ergotest 550 test bench

    • test stand calibrated by accredited test laboratory (DAkkS)

    Part number : erg175.010

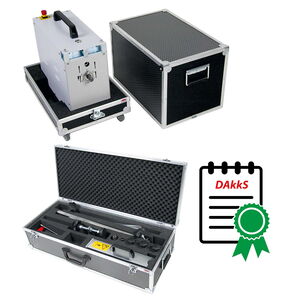

    erg175.011_pruefstand-ergotest-550-kalibriert-durch-akkreditiertes-prueflabor-dakks-mit-transportkoffer-set.jpg

    ergotest 550 test bench

    • test stand calibrated by accredited test laboratory (DAkkS)
    • incl. set of transport cases

    Part number : erg175.011


    ergotest 550 test bench

    • factory-calibrated test bench

    Part number : erg175.012


    ergotest 550 test bench

    • factory-calibrated test bench
    • incl. set of transport cases

    Part number : erg175.013


    Re-calibration (accredited test laboratory – DAkkS)

    Part number : erg705.903


    Re-calibration (factory calibration by ergoline)

    Part number : erg705.902

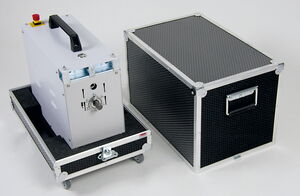

    Transport case for ergotest 550 test bench

    • sturdy, practical transport case for test bench
    • with swivel castors
    • (test bench not included)

    Part number : erg705.895

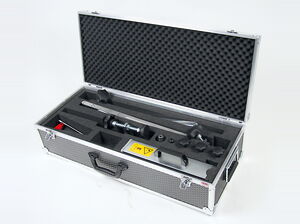

    Transport case for ergotest 550 accessories

    • sturdy, practical transport case for tools and accessories
    • (accessories not included)

    Part number : erg705.896

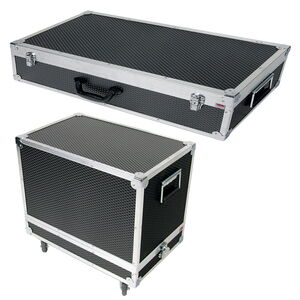

    Set of transport cases for ergotest 550

    • transport case for test bench and
    • transport case for accessories
    • (test bench and accessories not included)

    Part number : erg705.892

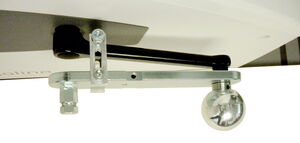

    Crank adapter ergotest 550

    • with hexagon socket
      (the pedal crank does not have to be removed)

    Part number : erg705.945

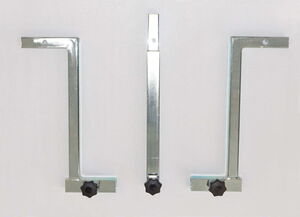

    Extension kit for test stand support legs

    • for ergoselect 8/10/12/400/1100
    • the support legs can be mounted at the top (for bicycle ergometers) and at the bottom (for reclining ergometers) of the test stand

    Part number : erg705.884

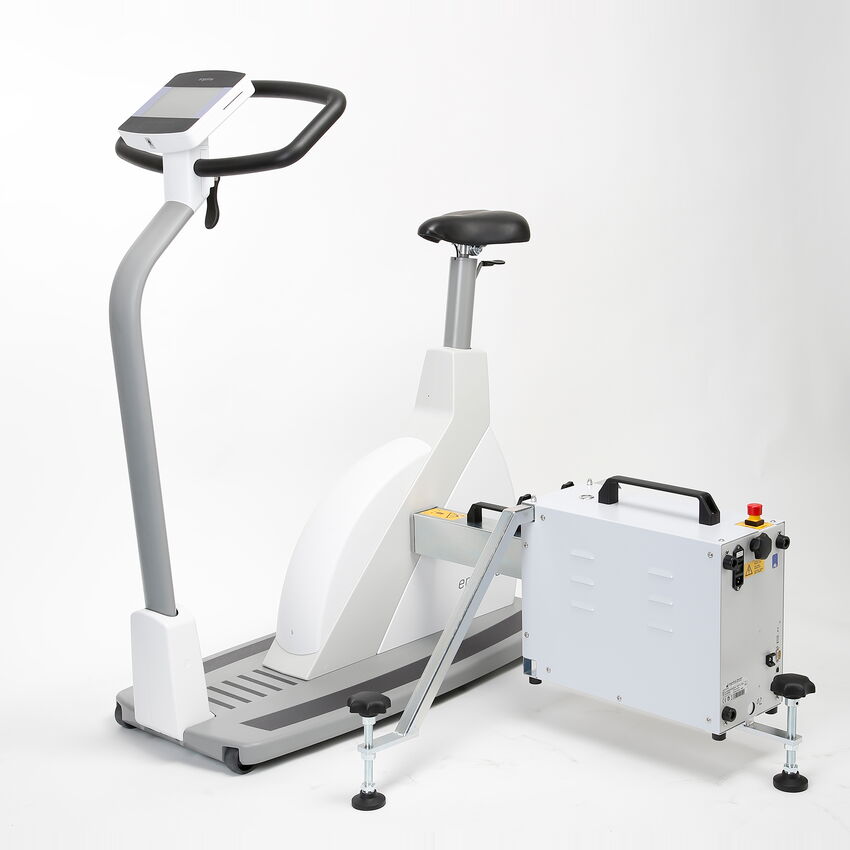

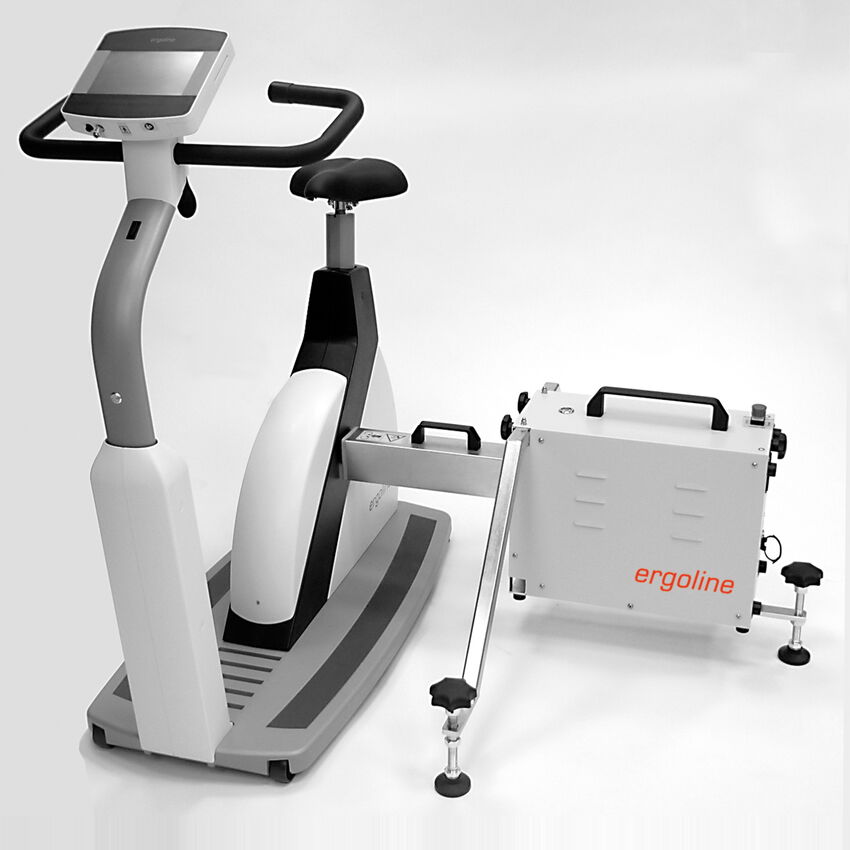

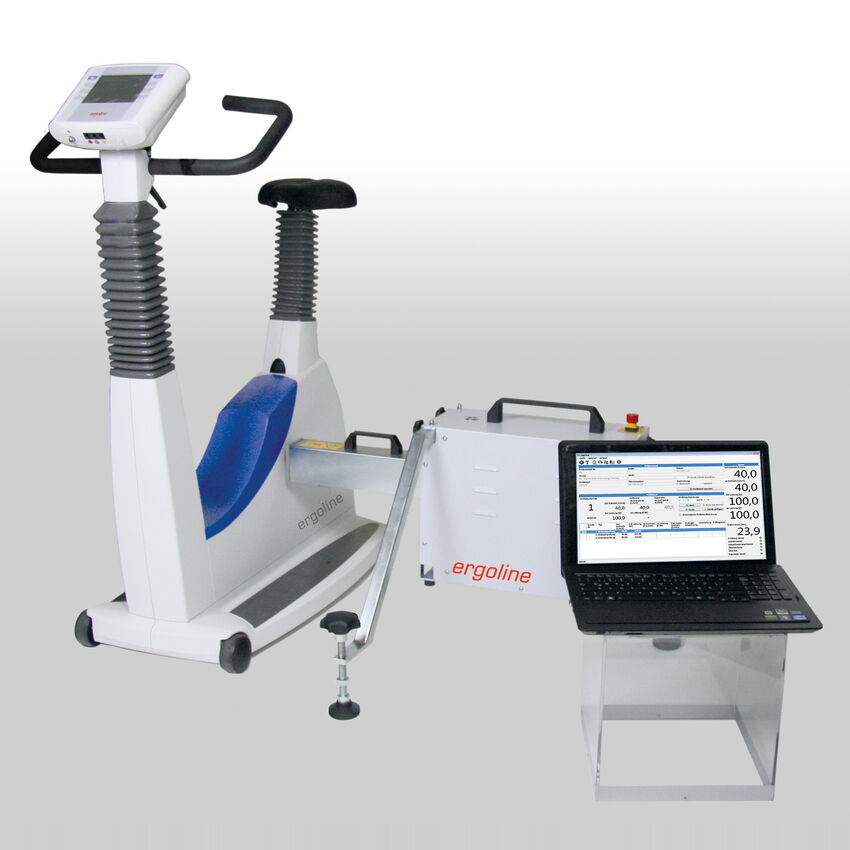

Additional views

Technical details

Product Information

Dimensions and weight

Ergometer test bench

length: 45.7 cm
width: 20.2 cm
height: 34.5 cm (without legs)
weight: approx. 24 kg

Further information
For further technical specifications, please click here

User manual and downloads

The user manual, documents, software and technical specifications can be downloaded here – free of charge.
